Tam Otomatik Tütün Paketleme Makinaları AZZ 57-SRV
Download
Machine Working Principle

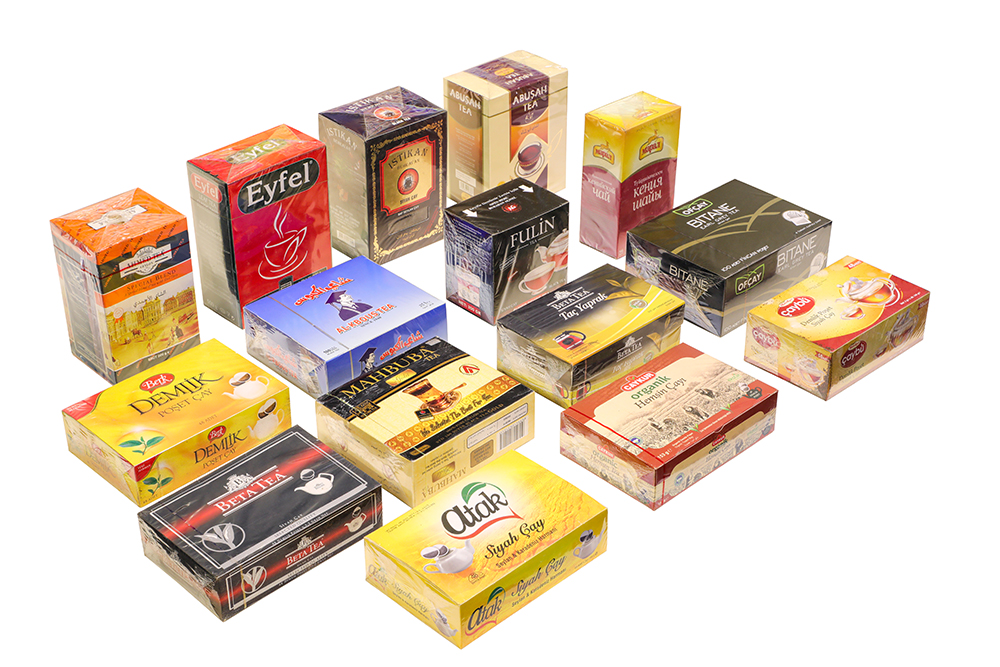

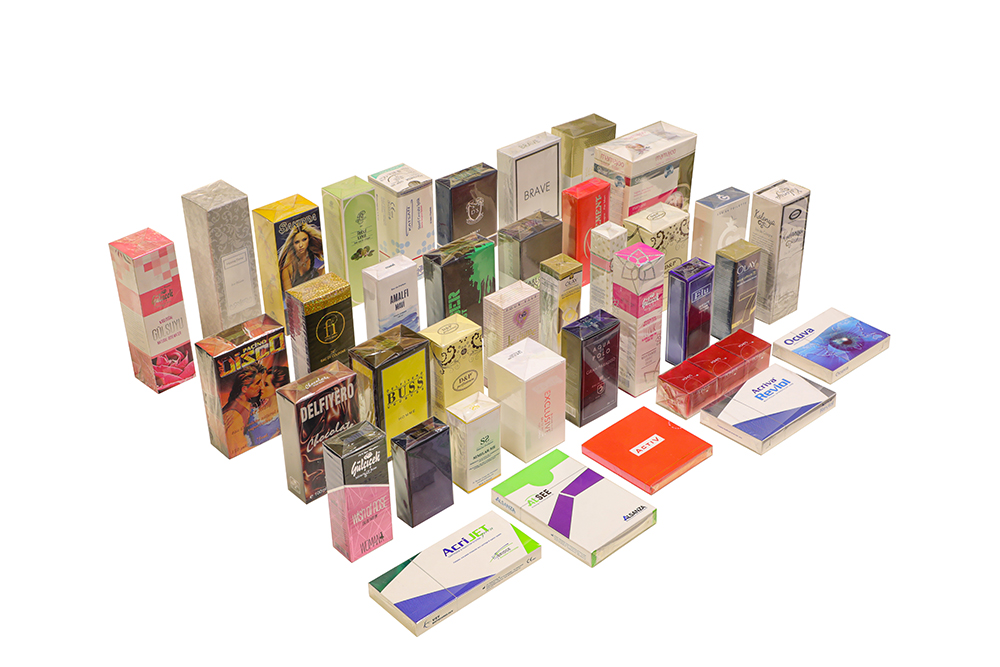

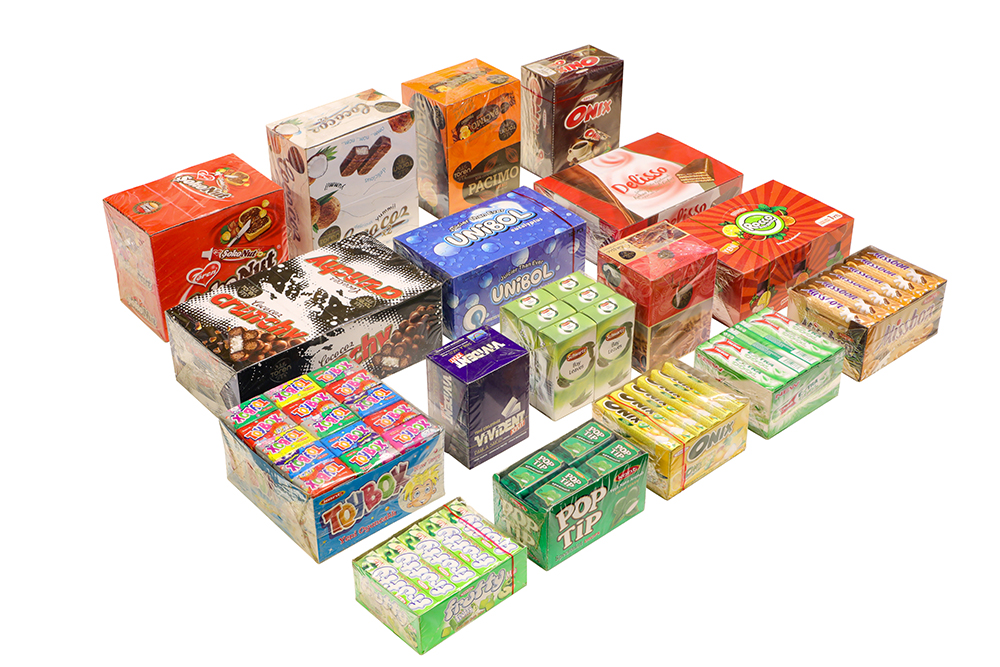

AZZ 57 SRV | Automatic Perfume, Cosmetic, Pharmaceutical, Chewing Gum, Hookah and Tea Box with Servo System

AZZ 57 SRV | Automatic Perfume, Cosmetic, Pharmaceutical, Chewing Gum, Hookah and Tea Box with Servo System

Our machine automatically packs square and rectangular shaped, medium and large volume boxes within the dimensions specified below, in one piece or in rows side by side in envelope type packaging model. Ideal and many settings and controls are made by means of PLC with encoder system and from the touch screen, it is an operator friendly and useful machine for servo motor packaging length adjustment in mold change. The feeding process can be done manually as well as automatic feeding depending on the way the boxes come from the production line. In order to open the outer gelatin of the boxes easily, the opening band strip can be attached. As an option, when the outer gelatin of the boxes is colored and printed, a photocell system and date coding equipment can be installed.

Machine Dimensions  H190 x W100 x L160 cm
Weight 950 Kg / 1.100 Kg
Feeding conveyor dimensions  H90-100 x W25-30 x L140-150 cm
Power  5.5 kW, 380/400 VAC 3 Phase 50/60 Hz.
Air consumption  6 bar / min
Noise Level  70-80 Decibel
Capacity per.min. 20-40 piece according to product volume



Package dimensions
Length    ( A ) Min:50mm / Max:320mm
Width    ( B ) Min:30mm / Max:120-160mm
Height  ( C ) Min:20mm / Max:80-100mm
OPP,BOPP,PVC Length
By touchpanel opp length adjusting
Min:110mm /Max:420-570mm



Ambalajlama Modeli

Parfüm İçin Nokta Yapıştırma

Machine Detail
