Yarı Otomatik Kutu Paketleme Makinası AZZM-4257
Download
Machine Working Principle

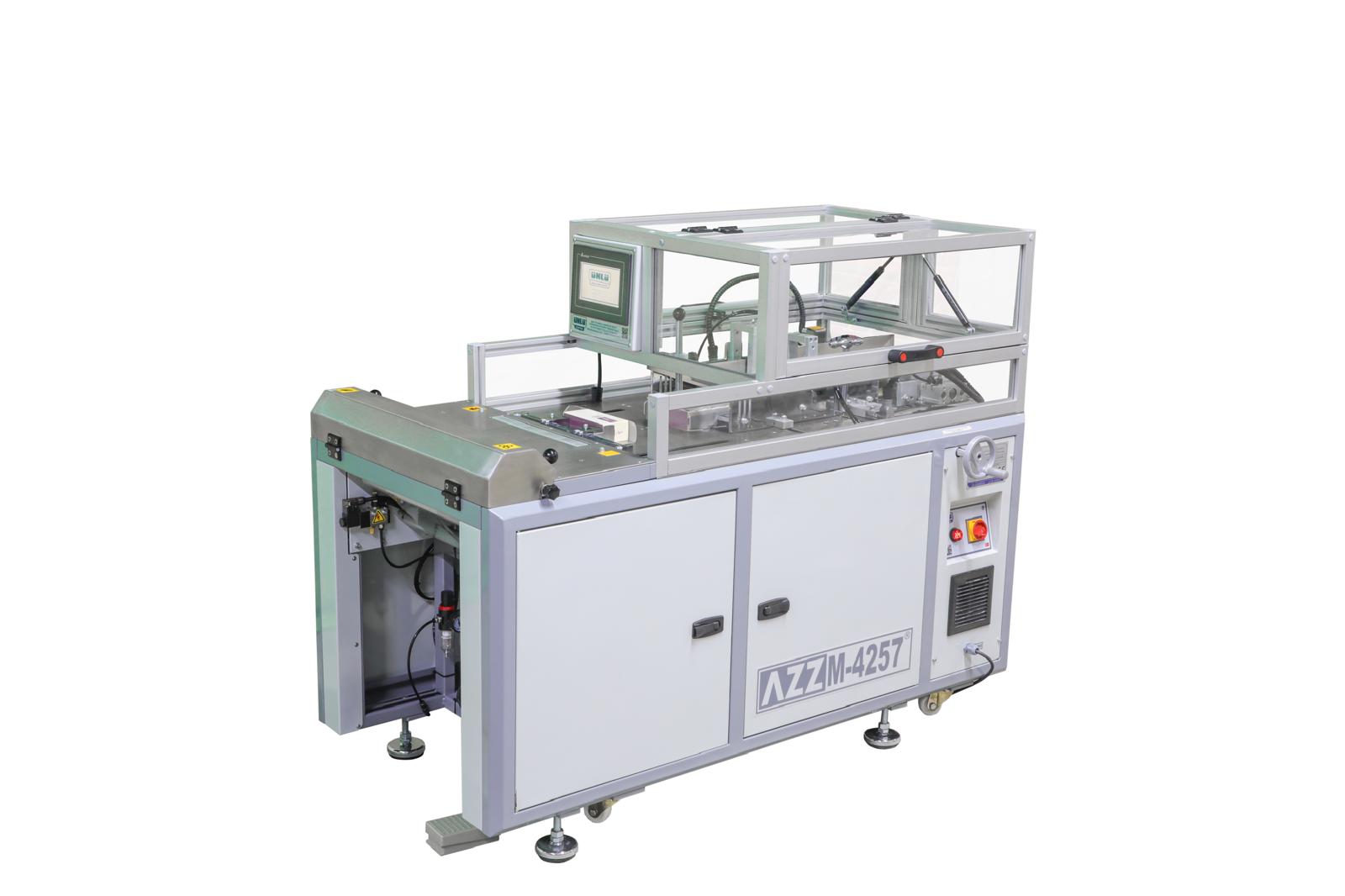

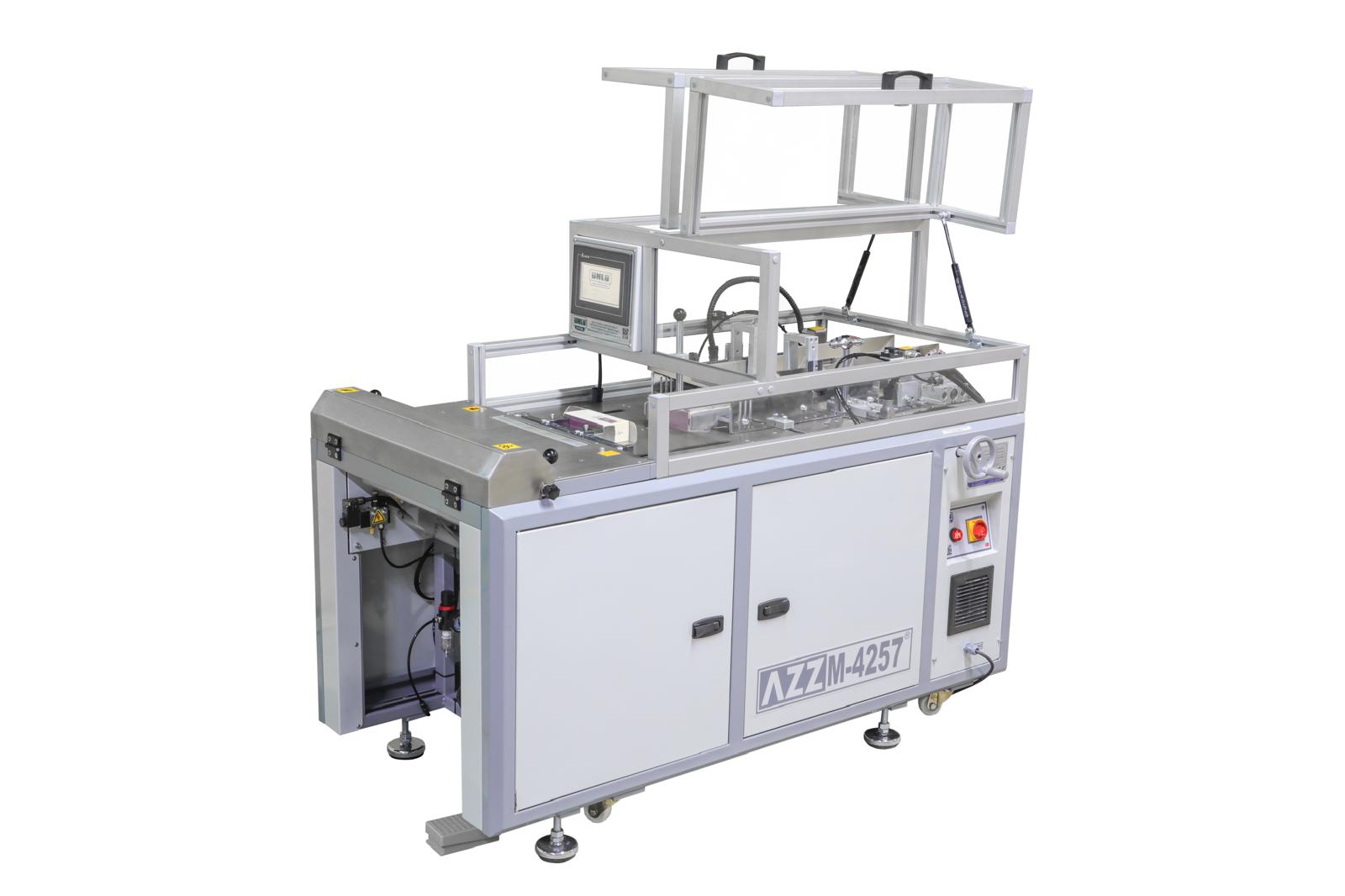

AZZ M - 4257 | Semi-automatic Servo system Perfume, Cosmetic, Pharmaceutical, Chewing Gum, Hookah and Tea Box

AZZ M - 4257 | Semi-automatic Servo system Perfume, Cosmetic, Pharmaceutical, Chewing Gum, Hookah and Tea Box

 Our machine semi-automatically packs square and rectangular shaped small, medium and large volume boxes within the dimensions specified below, in one piece or in rows side by side in envelope type packaging model. It is an economical machine that you can use as a joker in your operator-friendly solution-oriented production area, which is practical, ideal, and many settings can be made via a PLC with encoder system from the Touch screen, and sensitive packaging size adjustment can be made with a servo motor in mold change.

Machine Dimensions  H110 x W100 x L150 cm
Weight 320 Kg / 350 Kg
Power  1.5 kW, 380/400 VAC 2 Phase 50/60 Hz.
Air consumption  6 bar / dk
Noise Level  30-40 desibel
Capacity per.min. 7-12 adet/piece according to operator



Package dimensions
Length    ( A ) Min:50mm / Max:320mm
Width    ( B ) Min:30mm / Max:120-160mm
Height  ( C ) Min:20mm / Max:80-100mm
OPP,BOPP,PVC Length
By touchpanel opp length adjusting
Min:140mm /Max:420-570mm



PACKAGING STYLE DOT SEALING FOR PERFUME

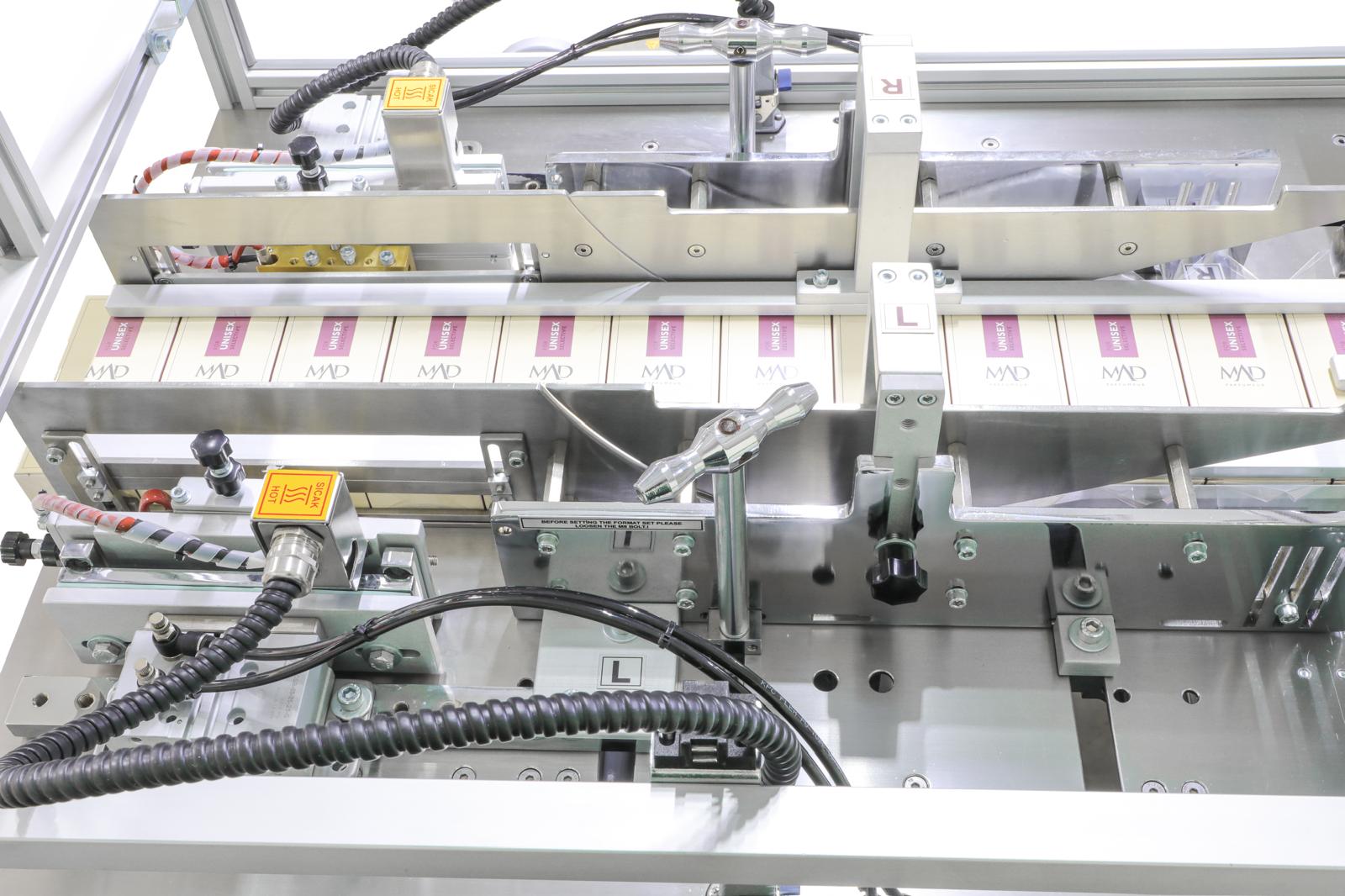

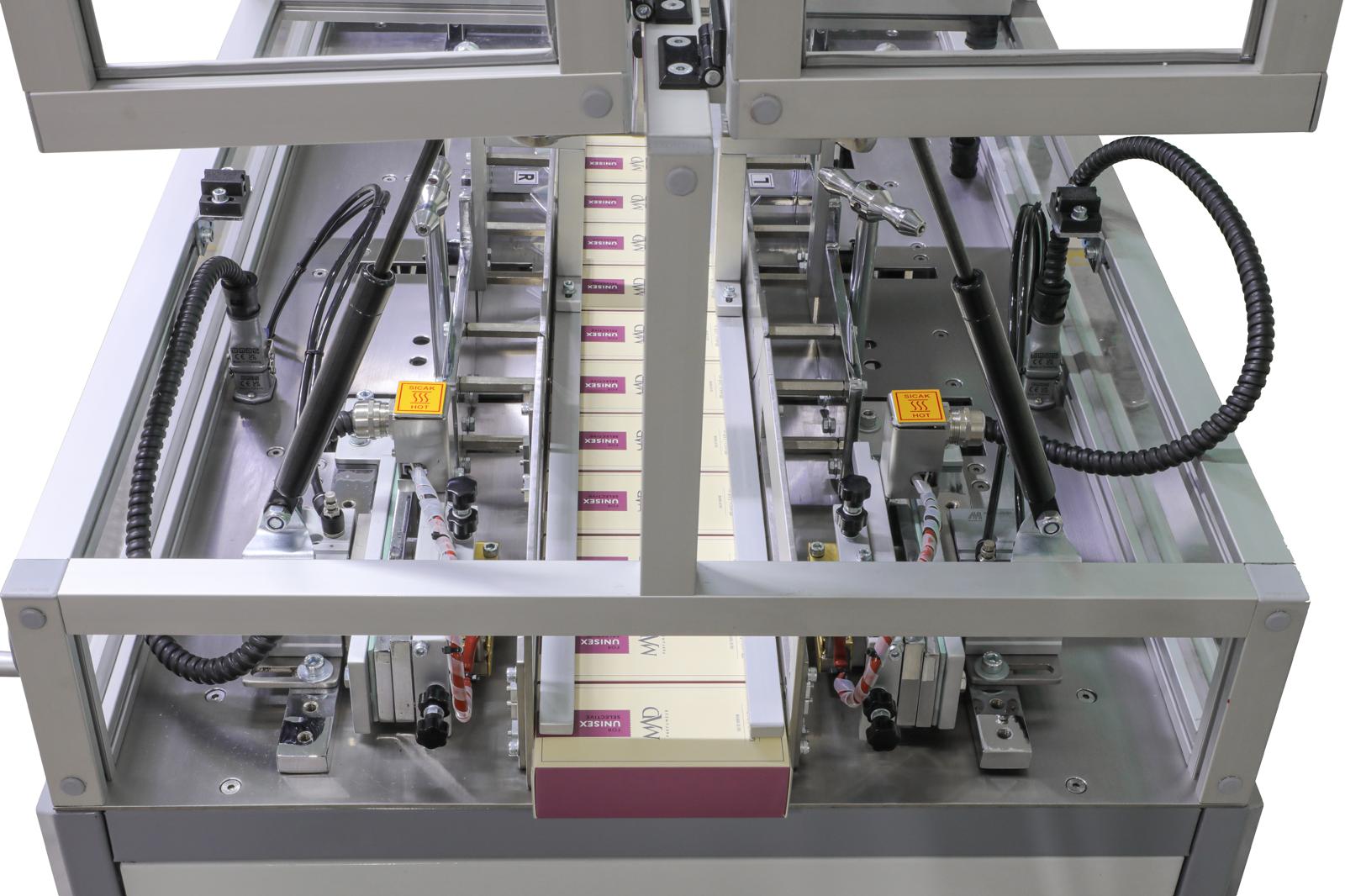

Machine Detail
